devilbiss spray guns

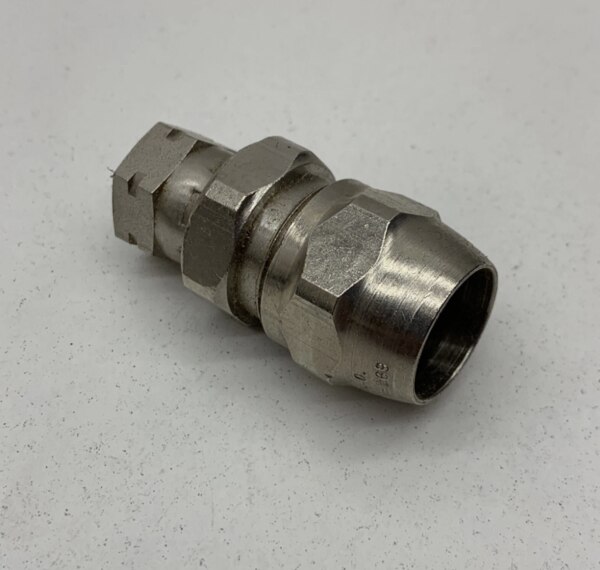

To quickly connect the Air hose with the gun with one CLICK.. Excellent durability and hassel free work life. To be connected with the Air Hose

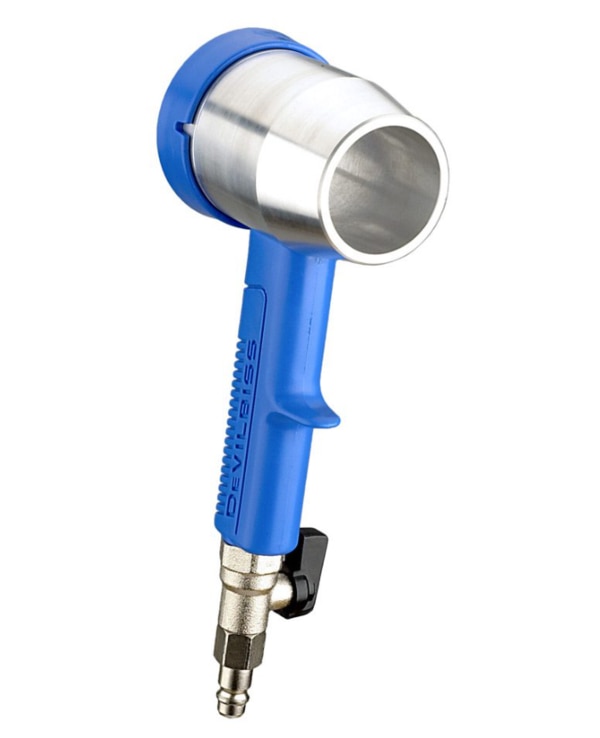

Devilbiss AERODRYNAMICS Aerodrystalline Air Dryer Dry Namix Gun, Stand Unit with Hose Aerodynamics is the ultimate air drying technology developed by Devilbis, the fastest, most energy-efficient water based paint drying method designed to be used in all types of automotive repair shops. Combining Devilvis state-of-the-art computer-used hydrodynamic and coanda effect, it redirects the pressurized air flow within the drynamic system to greatly increase the amount of air intake and generates highly effective air flow for drying. Replaceable filters installed on the air inlet of each dry namic gun remove airborne dust and prevent paint finish contamination. Dry Namic Guns can be used as a handheld unit or as a multi-gun system. The stand is made of aluminum adjustable pole that combines strength and light weight. The equipped air manifold provides almost endless versatility in the gun mounting position. Lower gun can be set to dry sill/rocker panel or bumper. In addition, it can also reach high areas such as 4WD and light commercial vehicles roof of both doors, boots, and hoods. Aerodrynamic system is compact and easy to store. Extension hose can be removed leaving only a small center hub

A versatile system to speed up the drying process. Multiply their intake by a factor of 7 to give generous air volumes. A fully adjustable aerodry stand provides full dryer flexibility, solvent resistant for cleaning in gun wash machines. Feature intake debris filters and shut-off valves. Specifications Air consumption per gun @3.4 bar (50psi): 325 L/min (11.5cfm) Amplification: x 7 Recommended working pressure range: 2-4 bar (30 – 60 psi) Noise level at 3.4 bar (50psi): 83 dBA

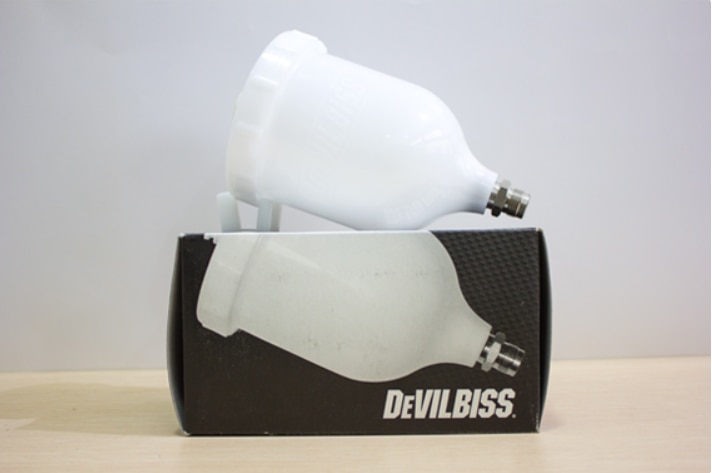

GFC-501 (acetal) 20 Oz. Cup This gravity feed cup is designed to work with the GFG, GFHV, GTI and FLG gravity feed spray guns and with or without the DeVilbiss disposable cup liner. The cup liner allows painting in any position and simplifies clean up. The cup is constructed from acetal which is easier to clean and resists stains better than nylon. This cup has a unique drip check lid to prevent paint from dripping out of the vent in the lid. It has a high grade stainless steel connector, compatible with waterbornes and all common coating materials. INSTALLATION : Protective coatings have been used to protect the cup after manufacture. Flush all equipment with a suitable solvent before use to remove these coatings from the material passages. ASSEMBLY OF CUP TO GUN : 1. Remove one of the cup gaskets (#3(White) for GFG and GFHV guns) (#3A (Blue) for GTI and FLG guns) from the poly bag. 2. Place this cup gasket in the fluid inlet of the gun body. See Cup Drawings. 3. Store remaining cup gasket in a safe place for future use. 4. Place filter (4) in cup outlet at this time if desired. See Cup Drawings. 5. Assemble cup to gun and tighten hand tight. FILLING WITH PAINT : Fill the cup with paint to the bottom of the threads. Do not overfill. INSTALLING THE LID : Place plastic lid on the top of the cup, and hand tighten. Fold vent cap and push onto center portion of lid (if vent cap is not already assembled). PAINTING : This disposable liner allows you to spray in any position, even upside down. To spray upside down, you must first purge the air from the cup liner. To purge air from cup liner : 1. Connect to proper air supply (minimum of 30 PSI) 2. Turn cup upside down (See Figure below) 3. Trigger gun until a constant paint flow is observed. CLEANING Note: For routine cleaning, it is not necessary to remove cup from gun. Do not remove washer (3) from gun. If washer (3) is removed, it must be replaced. Remove lid and properly dispose of any excess paint. Pour in a small amount of clean solvent. The amount will vary with different coatings and solvents. Reinstall lid. Shake cup to wash down the inside surfaces. Pull trigger to allow some solvent to be flushed through gun. Remove lid and pour out dirty solvent. Add a small amount of clean solvent and repeat procedure. Wipe exterior of cup and lid with a clean cloth and clean solvent. If a paint filter was used in the bottom of the cup outlet, it should be removed and cleaned or replaced at this time.

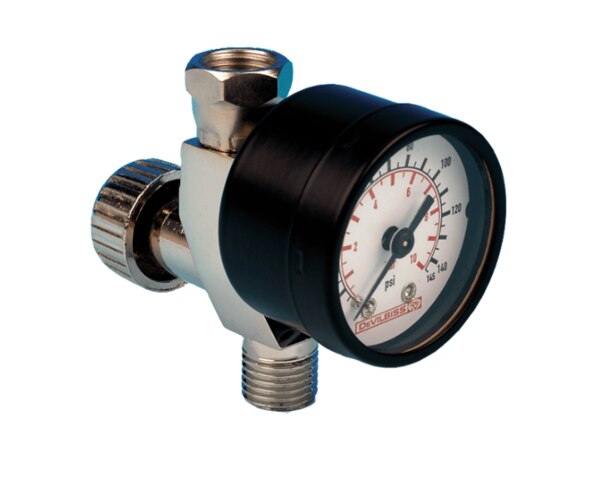

DeVilbiss HAV-501-B Air Adjusting Valve Fits neatly in-line at the gun air inlet Can increase or decrease working pressure right at the gun Calibrated up to 11 Bar (160 psi)

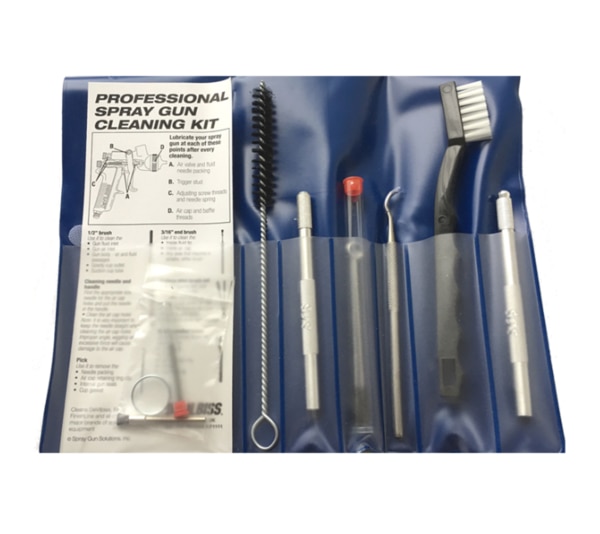

DeVilbiss Gun Cleaning Kit The Professional Spray Gun Cleaning Kit from DeVilbiss is the convenient, practice, and inexpensive system for cleaning DeVilbiss, Binks, FinishLine and all other major brands of equipment. The Kit Contains: 1/2″ Brush- Use to clean the gun fluid inlet, gun air inlet, gun body (air and fluid passages), gravity cup outlet and suction cup tube. Cleaning Needles and Handle- A range of fine needles with useful handle for easy cleaning or air cap holes. Care must be taken when using this tool so that holes are not damaged. If damage occurs, the spray pattern and gun performance could be affected Pick- Useful additional tool for removing needle packing, air cap retaining ring dip, internal gun seals and cup gasket. Spray gun Oil- After cleaning a spray gun, the vital pivoting or frictional points should be lubricated. For your convenience, a sachet of spray gun oil is included in the kit. 3/16″ End Brush- Use to clean inside the fluid tip, inside air cap and any other arease that require a smaller, stiffer brush. 3 Piece Mini Brush Set- Use for cleaning the centre hole of the air cap, horn holes of the air cap, fluid tip, baffle and any small spray gun passage. Black handle Brush- General purpose tool for cleaning gun body, cup, air cap and ring, trigger and gun controls.

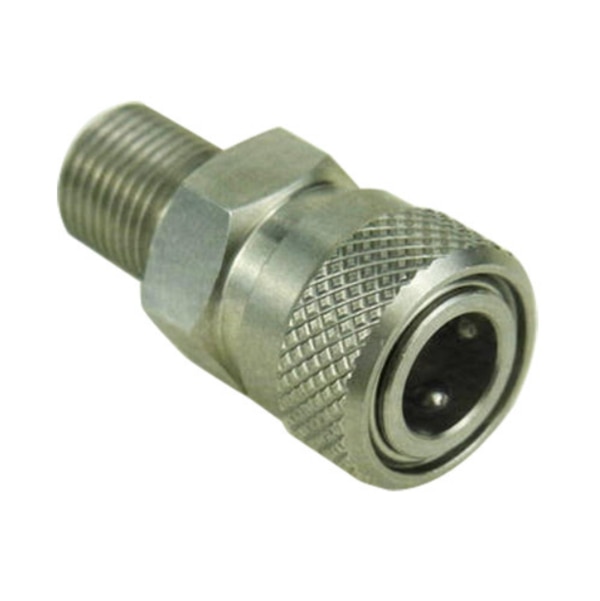

Made of heat treated hardened steel for strength and durability, Zinc plated finish for rust and erosion resistance Spring loaded quick release couplers which should be used on the compressor so that the air is contained when the air tool is disconnected When using the coupler(s) slide back the sleeve, push in the connector and then slide back the sleeve fully to lock in the connector Enables tools and airlines to be quickly connected / disconnected, Reduces accidental airline disconnection Quick Release Coupler for 8mm(inner diameter) hose Type: SM20+PM20, 13mm external thread, Fit to 1/4 hoses

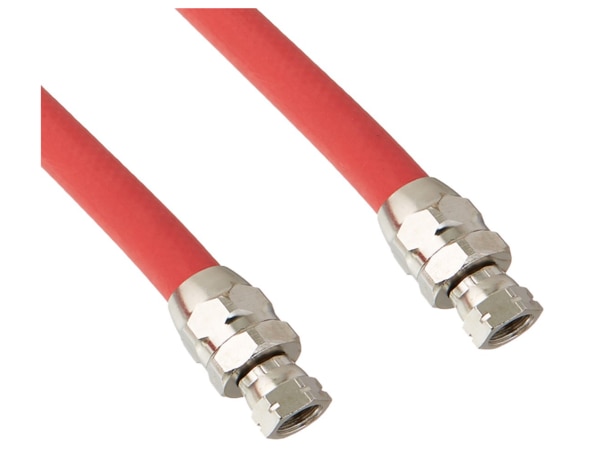

This DeVilbiss H-6065 High Flow Air Hose is designed to provide a high level of breathing comfort to those who need it. It is lightweight and stretchable so you can easily control the flow of air. The soft, flexible body makes it comfortable to wear no matter how long you are wearing it.10 mtr long with end connector

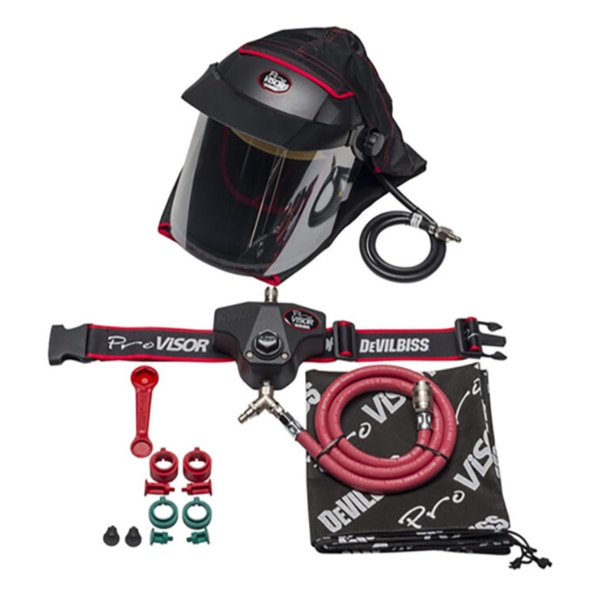

Complete DeVilbiss PROV 600 air-fed full-face respiratory protection. The gun supply hose swivels both radially and laterally which ensures better spray dynamics without the hose restricting the movement of the sprayer. The DeVilbiss PROV 650 disperses breathing air gently and evenly around the lightweight visor with no misting or discomfort. This ensures every sprayer can work in comfort and reassurance. The wrap around the visor provides excellent and much wider peripheral vision than previous and other air-fed masks. The removable peak can help reduce glare from spray booth lighting. A whistle is incorporated to warn the sprayer that an insufficient quantity of breathing air is being supplied to the mask. The Gun supply hose swivels both radially and literally, ensuring better spray dynamics without hose restricting the movement of the sprayer. Left or right-sided waist belt fitment without having to change the air fitting configuration. The Pro Visor disperses breathing air gently around the lightweight visor at a positive pressure with no misting or discomfort, ensuring every sprayer can work at its best. The wrap-around visor provides excellent and much wider peripheral vision than sprayers will be used to, while the removable peak can help reduce glare from spray booth lighting. A whistle is incorporated to warn the operator that an insufficient quantity of breathing air is being supplied to the Pro Visor. Technical Specifications for DeVilbiss PROV 650 Protection: APF=40 / NPF=200 Carbon filter life: 3 months Supply pressure: 4.0 bar (60psi) minimum to 7.0 bar (100psi) maximum Airflow rate: 160 – 220 L/min (5.7 – 7.8 scfm) Noise level @ 200 L/min: 80 dB (A) Approvals: PPE directive 89/686/EEC. Conforms to EN 14594:2005 Class 3A Zone classifications: Suitable for use in Zones 1 and 2 hazardous areas (gas groups llA)

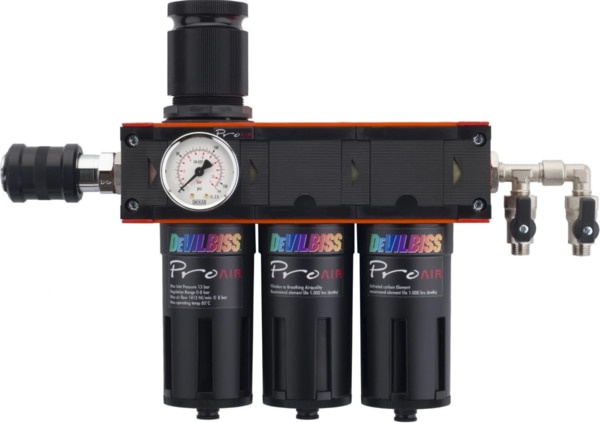

The Devilbiss ProAIR-3 incorporates both filters from the ProAIR 1 and 2 plus and activated carbon filter, supplying breathing air filtered down to 0.003 microns and suitable for air fed respirators. The activated carbon filter removes traces of oil, solvents, hydrocarbons and unpleasant odours while the high airflow is ample for conventional and compliant spray guns. Also suitable for use in a low bake spray booth (up to 80°C).

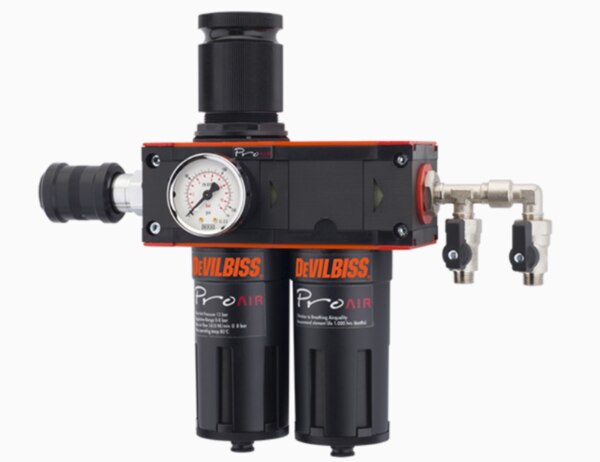

Devilbiss Pro AIR-2 is the industry favourite for fitting in an automotive refinish spray booth, providing clean breathable air for air fed safety equipment. Triple filtration removes dirt and other contaminants down to 0.01 microns through the coalescing filter, while the capacity of 32 cfm provides sufficient air flow to run an air fed mask and spray gun. Suitable for use in low bake spray booths (up to 80°C)

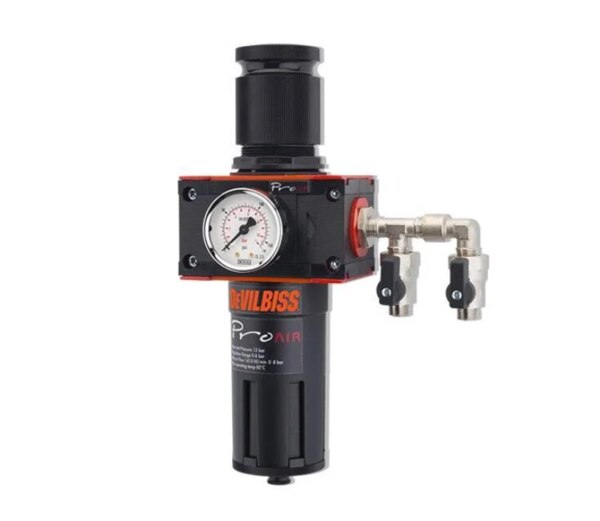

This high capacity, 123 cfm, two outlet unit has been designed for use in the spray booth. Constructed using leading edge techno polymer materials, the ProAIR-1 is resistant to solvents and withstands the heat of the bake cycle (up to 80°C). Dual filtration eliminates dirt down to 5 microns from reaching the spray gun and like all ProAIR filter regulators, condensate can be removed from the filter bowl manually or semiautomatically on depressurisation of the system. Ideal for running a spray gun (not suitable for breathing air).
