spray guns and paint system accessories

with standard QCC RPS cups Order No. 203125 Nozzle Set only SATAjet 100 B F RP 1.1 UV Order No. 182600

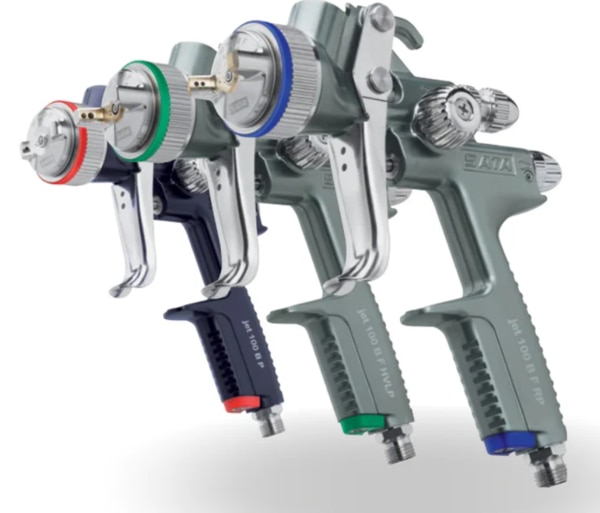

for the application of spray putty The nozzle set “P”creates high film builds. The sharpedged spray fan allows precise application. „ Same features as SATAjet 100 B F, however without air micrometer „ The SATAjet 100 B P is an excellent choice for spraying large flake

Sturdy spray gun with anodized spray gun body „ Fully equipped with round/flat fan control and material flow control as well as air micrometer „ SATAjet 100 B RP 1.1 is an excellent choice for UV primer „ Comfortably lightweight and ergonomically optimized spray gun „ Little cleaning and maintenance „ Versatile use due to four different RP and HVLP nozzle sizes

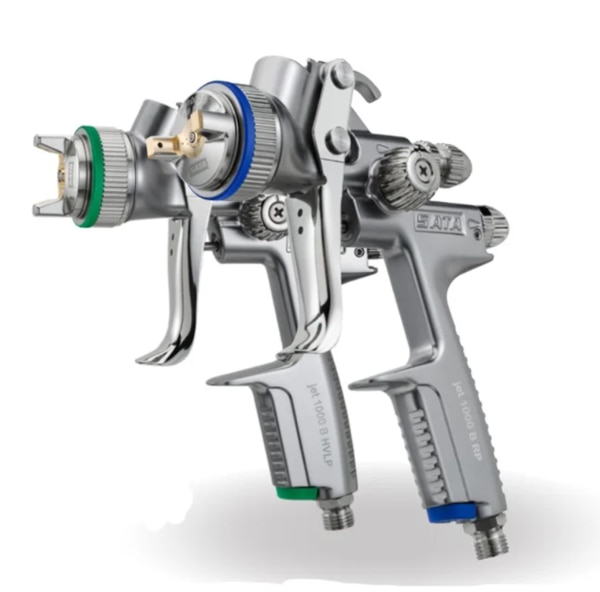

For Universal Coatings The SATAjet 1000 B is the multi application choice amongst gravity flow cup spray guns for craft and fleet. Due to the wide range of nozzle sizes and accessories available, such as pressurized and agitator cups, various materials can be perfectly applied: low-viscosity stains, clear coats, texture finishes and glazes as well as spray-on glues and other thixotropic products. „ For the application of a wide range of materials, from primer and paint to glue and separating agents. „ Universally adjustable spray pattern with fine atomization for a high work speed „ Large range of accessories available, including extensions, slit nozzles and nozzle setups for glue application.

The pressure-fed gun for large surface applications Painting entire utility vehicles requires pressure fed spray guns. „ High surface efficiency due to material supply from pressure tanks or via double diaphragm pumps „ Wide, smooth and homogeneous spray fan for perfect finishes at high application speed „ Extremely sturdy version with axial round/flat spray control „ Optional: fluid tip and paint needle with lifetime prolonging surface „ RP: 15.5 cfm at 36 psi; HVLP: 20 cfm at 36 psi

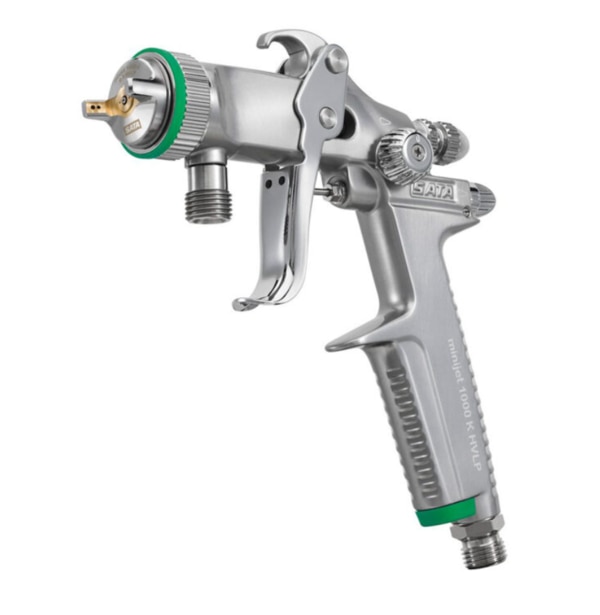

The compact industrial gun Compact, reduced size spray gun with full size attitude! Great for specialty applications. „ Small to large panels and spot repairs of existing finishes „ Excellent for small objects or hard to reach areas „ Designed for less hand fatigue and longer continuous work „ Also available in siphon cup version, SATAminijet H, 1.4 nozzle „ Both HVLP and RP versions are available „ RP: 7 CFM at 36 psi; HVLP: 4.2 CFM at 29 psi

The lightweight universal pressure-fed gun for large surface applications „ Allows connection to all sorts of material supply systems, such as pressure pots, double diaphragm pumps and central paint supply systems „ Suitable for the application of various materials – waterborne or solvent-based „ Sturdy, easy clean surface „ Special air flow at the air cap horns reduces overspray settling at the air cap „ Optional: fluid tip and paint needle with lifetime prolonging surface „ RP: 14.5 cfm at 35 psi; HVLP: 19 cfm at 35 psi

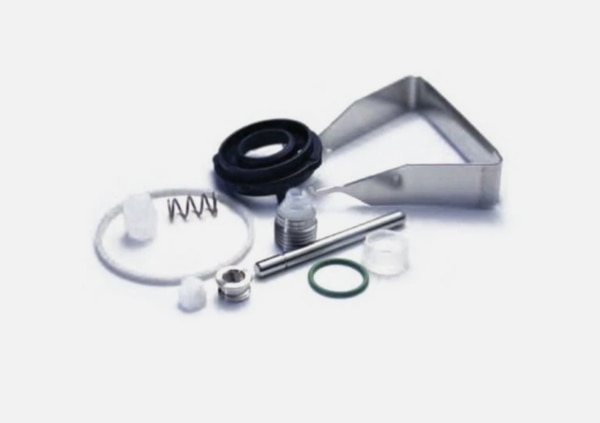

Slimmed down maintenance sets, what you need to rebuild your SATAjet 1500 B SoLV. Air cap ring seal, sealing element for fluid tip, air piston packing & holder, air piston head and rod, needle packing and holder, seals, spring, screws, air distribution ring & puller. Product Benefits: Original SATA accessories and spare parts Highest quality For trouble-free work

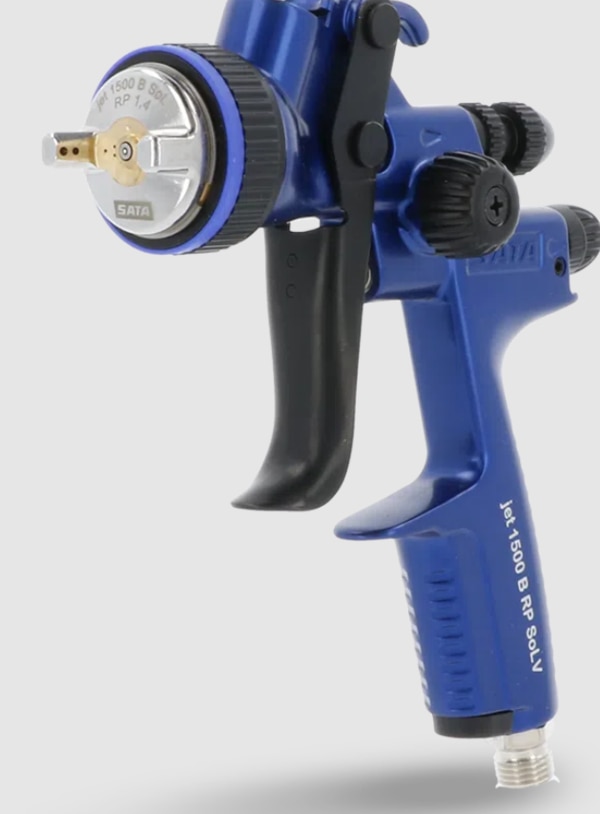

The SATAjet 1500 B SoLV paint spray gun provides outstanding SATA quality for all solvent-based materials. It is the preferred option for achieving superior clear coat finishes. The SATAjet 1500 B SoLV paint spray gun aligns with your requirements for transfer efficiency and cost-effectiveness, while providing an easy-to-clean surface and ergonomic design for exceptional comfort. Product Benefits For use in the full system – solvent-based base coats, sealing or clear coats. Precise – uniform spray structure. Enhanced air pressure range – from 0.5 to 2,4 bar. Fast working speed. Anodized gun body in blue.

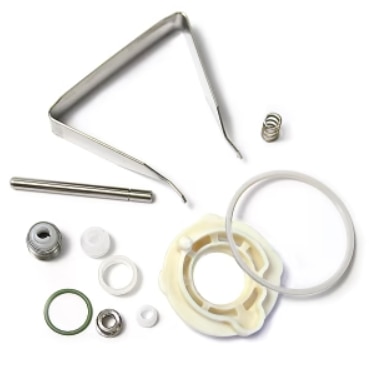

Set Includes (1) #211508 Sealing ring for air cap ring (1) #140582 Sealing element for fluid tip (1) #211425 Air distribution ring and extraction tool (1) #86843 Air piston rod (1) #133942 Seal retainer (1) #133934 Spindle seal (1) #133991 Air piston head (1) #15438 Paint needle packing ( 1 ea: packing, spring, compression screw)

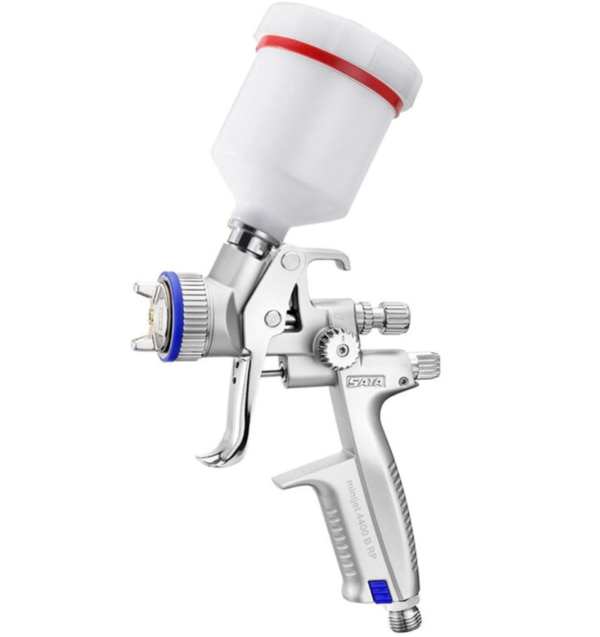

SATAminijet 4400 B HVLP / RP Mini / Midi Gravity Spray Gun (202390 / 198226) Our opinion: Endorsed by those in the know as the ultimate mini / midi gun. This SATA 4400 minijet B HVLP has great fan adjustability from felt pen to wide hand. Class leader. Compact. Low maintenance. Easy to clean. The SATAminijet 4400 B is perfectly suited for areas that are small or difficult to access. The special SR nozzles are suitable for small repairs (spot repair) on vehicles. All modern paint systems can be applied with this spray gun. Product Benefits Small and compact: Particularly suitable for smaller areas or hard to reach places Special spot repair nozzle sets for minor damage repairs to vehicles Low maintenance, self-adjusting air piston and paint needle packings Ergonomics With its new, ergonomically shaped handle, the spray gun is perfectly balanced. All adjustment elements can be safely operated even when wearing gloves. Furthermore, the design of the round/flat spray control is geared to the SATAminijet 3000 B. The spray gun is sturdy and long-lasting; the spray fan can be exactly adjusted with a 3/4 turn only. Enhanced durability The spray gun body is equipped with a corrosion-resistant chrome surface. The sturdy air cap is made of chrome-plated brass; the paint needle and fluid tip are made of tempered stainless steel. The trigger protects the paint needle from overspray during painting, thus prolonging the lifetime of the paint needle seal. The air piston rod has been especially reinforced. All these features result in an extended spray gun lifetime. Large QCC cup connection The SATA 4400 minijet B HVLP allows the use of all three RPS cup sizes. Furthermore, the large connection makes the cleaning of the material passages extremely safe and easy. Small size – big performance For small surfaces and areas of difficult access HVLP and RP nozzle sets Special SR nozzle sets for the smallest spot repairs (Spot repair) New ergonomically shaped handle Easy cleaning and maintenance Large cup connection QCC for all RPS cup sizes Highly flexible in terms of atomisation pressure and spray distance VOC-compliant atomisation technology – optionally available as HVLP low pressure or RP optimised high-pressure technology Adam 2 Compatible: Innovative and versatile digital retrofit air micrometre Perfectly suitable for the use of RPS disposable cups QCC Quick Cup connection for quick and clean cup changes as well as easy cleaning CCS Colour Code System for the convenient identification of your spray gun Top-quality is not enough – we guarantee it: for three years

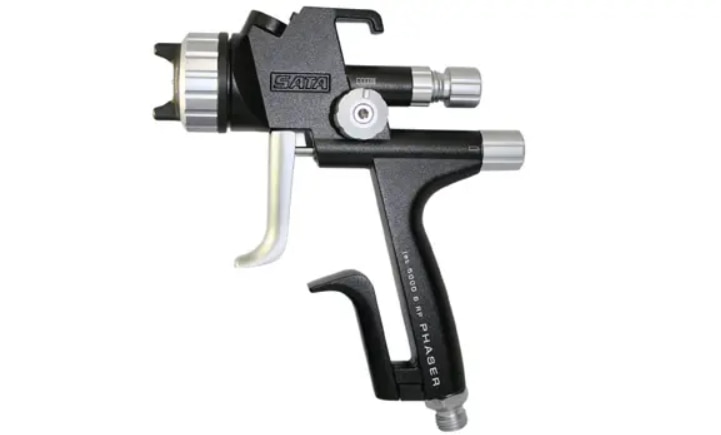

The PHASER paint spray gun was developed with its special visual appearance, special materials and a special concept for your very special projects. The unusually elegant design was developed in cooperation with the Porsche Design Studio. Technically, the PHASER is identical to the top model SATAjet X 5500. It has the same nozzle concept and all the other convincing features that make the SATAjet X 5500 an outstanding paint spray gun. With the SATAjet 5000 B, painters can adjust the inlet pressure and the painting distance according to the paint used, the climatic conditions and their working style – and achieve perfect results in any situation. The ergonomic paint spray gun has been developed in cooperation with the Porsche Design Studio – to ensure perfect ergonomics. Robust and light – with ergonomic adjustment elements, the SATAjet 5000 B ensures comfortable working.
